Monorail Trolley
GTEX geared trolley

Masada provide a wide range of beam trolley both in push type and in geared type. These beam trolley are driven by hand under the I-beam truck. They are also called manual trolley, push beam trolley, geared beam trolley as well. When the manual trolley equipped with chain hoist, it can move in vertical or horizontal direction during lifting and transportation. They provide good solution for warehouse machine installation, cargo lifting, vehicle loading or unloading, etc.



GTEX monorail trolley all in high strength carbon steel, aluminum bronze and stainless steel material. They are rustproof and corrosion resistant. Hand pull hoist explosion proof Geared Chain Trolley are widely used in petroleum, chemical, gas stations, oil depots, gas production, chemical, military, electric power, mining, electronics, railways and other potentially fire and explosion hazardous environments.


  • Main Feature

    ● Materials

    -Special paint or powder coated side plates

    -Copper plated Bail and clapboard

    -Dacromet treated main shaft assembly

    -Stainless steel screw and nut

    -Copper plated trolley wheel or bronze wheel

    -Copper Nameplate and rivets



    ● High explosive proof grade

    ● Can be used in flammable and explosive environment

    ● Wear resistance, high performance of anti-corrosion

    ● Easy to operate, recommended to use with chain hoists which can move in vertical or horizontal direction

    ● Solid and durable

    ● Suitable for a wide range of flange width (Beam width)

  • Techanical Parameter

    Mode

    GTEX01

    GTEX02

    GTEX03

    GTEX05

    GTEX10

    GTEX20

    GTEX30

    Capacity

    t

    1

    2

    3

    5

    10

    20

    30

    Test load

    KN

    14.71

    29.42

    44.13

    61.29

    122.58

    245.17

    367.75

    Min.radius curve

    m

    1

    1.1

    1.3

    1.4

    2

    3.5

    6

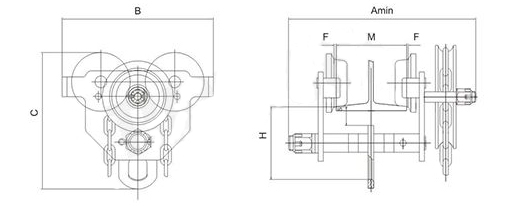

    Dimensions(mm)

    Amin

    a

    311

    327

    343

    355

    388

    449

    -

    b

    429

    445

    457

    490

    551

    582


    B

    246

    276

    332

    377

    424

    555

    710

    C

    222

    263

    309

    353

    396

    498

    598

    H

    125

    150

    171

    196

    190

    233

    285

    S

    38

    38

    40

    42

    45

    58

    65

    F

    1.5-3

    Beam range(mm)

    M

    a

    64-203

    88-203

    100-203

    114-203

    124-203

    136-203

    -

    b

    64-305

    88-305

    100-305

    114-305

    124-305

    136-305

    175-305

    Net weight

    KG

    a

    10.5

    17.5

    27

    41

    82

    159

    -

    b

    11.5

    19

    29

    43

    89

    167

    327


    GTEX 外形尺寸图.jpg
